Description

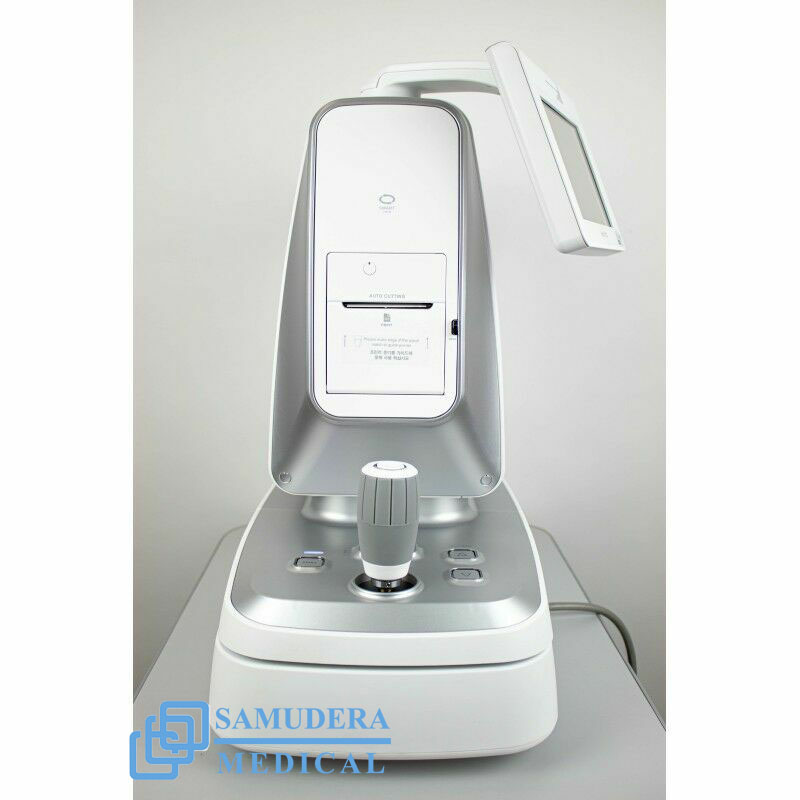

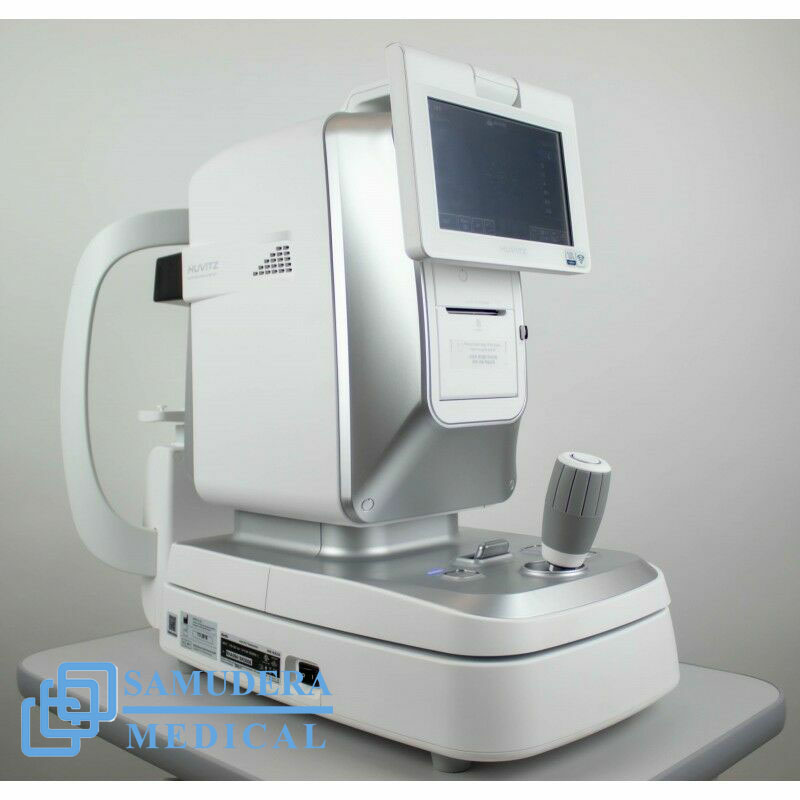

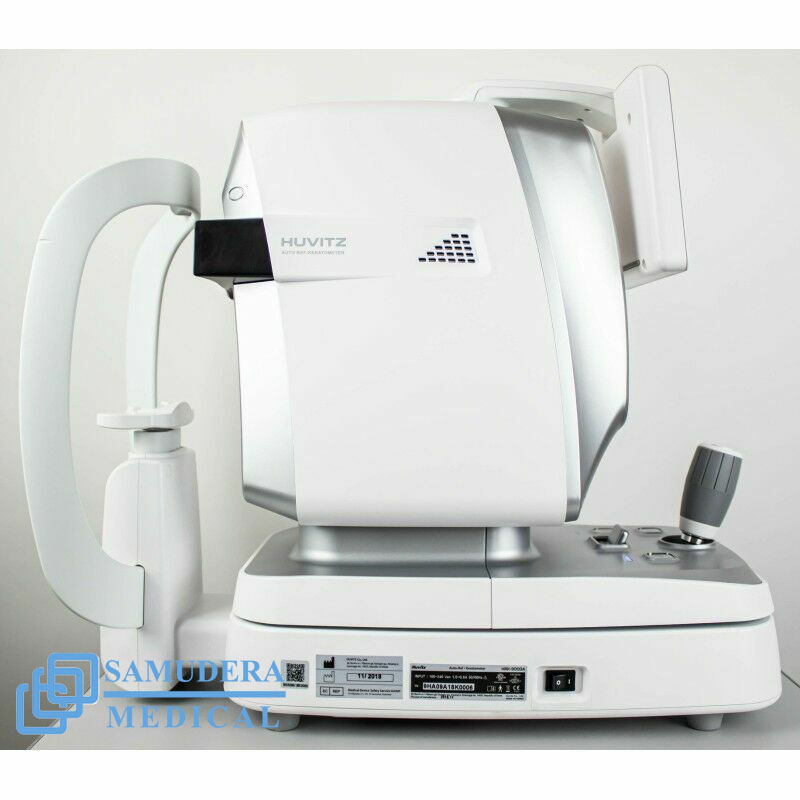

Huvitz HRK-9000A Auto Refractor Keratometer

Measurement Mode

K/R Mode Continuous Keratometry & Refractometry

REF Mode Refractometry

KER Mode Keratometry

KER P Mode Peripheral Keratometry

Color View Mode Color View & Contact Lens Fitting Assistance
(White & Blue LED Light)

Meibography Mode Special Mode for Observing Meibomian Gland

TFBUT Mode Special Mode for Measuring TFBUT (Tear Film Break-Up Time)

Refractometry

Vertex distance (VD) 0.0, 12.0, 13.5,13.75, 15.0

Sphere (SPH) -30.00 ~ +25.00 (VD=0.5in/12mm) (Increments: 0.01, 0.12 , 0.25D )

Cylinder (CYL) 0.00 ~ 12.00D (Increments: 0.01, 0.12 and 0.25D)

Cylinder Form – + – + (Mixed)

Pupil Distance (PD) 0.4 ~ 3.35in (10 ~ 85mm)

Minimum Pupil Diameter ø 0.08in/2.0mm

Keratometry

Radius of Curvature 0.2 ~ 0.5in (5 ~ 13.0mm) (Increments: 0.01mm)

Corneal Power 25.96~67.50D (increments : 0.05, 0.12, 0.25D)(When corneal equivalent refractive index is 1.3375)

Corneal Astigmatism 0.00 ~ – 15.00D
(Increments: 0.05 / 0.12 / 0.25D)

Axis 1~180° (Increments: 1°)

Pupil, Iris, Diameter 0.08 ~ 0.55in (2.0 ~ 14.0mm) (Increments: 0.1mm)

Memory of Data 10 measurements for each eye

Movement Range

Up-Down ±0.6in/15mm

Left-Right ±0.2in/5mm 0.08in/±2mm

Forward-Backward ±0.2in/5mm 0.08in/±2mm

Others

Display 7 inch Wide Color TFT LCD, Touch panel with Tilting function

Interface RS-232 x 1, USB(for Service) x 1, Wi-Fi (for Data communication)

Wi-Fi Band : 2.4GHz, IEE802.11b/g Security : WPA2-PSK

Internal Printer Thermal Line Printer with Auto Cutting Function

Power Saving Automatic Switch-Off (5min)

Power Supply 100-240VAC, 1.0-0.6A, 50/60Hz

Dimension / Weight 10.3(W) X 20.4(D) X 17.4(H)in / 41.8 lb (262(W) X 518(D) X 441(H) mm / 19 Kg)

VA Test – Subjective Refractive Test

VA Measurement <0.1/0.1/0.25/0.32/0.4/0.5/0.63/0.8/1.0/1.25> <20/200 / 20/200 / 20/80 / 20/60 / 20/50 / 20/40 / 20/30 / 20/25 / 20/20 / 20/16>

Sphere(SPH) -22D to +22D (increment 0.25D)

Cylinder(CYL) 0 to ±10D (Max, increment 0.25D)

Cyl(Axis) 0 to 180˚ (increment 1˚/5˚)

Huvitz HRK-9000A Autorefractor Keratometer provides an objective measurement of the refractive error and prescription for glasses or contact lenses. Unceasing efforts for higher accuracy lead to objective refraction followed by standardized subjective refraction with HRK-9000A and in the end, unprecedented accurate results wait for you. HRK-9000A speaks no compensation, but perfectionism in refraction composed of glare test, superior contrast sensitivity and TFBUT / Meibography which are introduced for the first time in the world. A beautiful curvilinear design speaks emotional stability in you. With HRK-9000A, take satisfaction which you have ever enjoyed before.
Auto Ref/Keratometer Features

TFBUT Measurement & Meibography
Contrast Sensitivity & Glare Test
Wavefront Technology
Touch & Tilting 7″ Color Display
Wireless Communication
Peripheral Keratometry Measurement
IOL Mode
Iris & Pupil Diameter Measurement
Contact Lens Fitting Assistance Guide
Efficient Contact Lens Prescription
Micro Lens Array creates separated focal spots to provide valuable information about the patients’ ocular systems
More Accurate Data including KER and REF data
Color View Mode: Full color CCD camera & white LED source in ref/keratometer enables you to see eyes & contact lens fitting status which was previously only possible with slit lamps
Subjective VA Test
Auto Tracking
Adjustable TFT LCD w/ LED backlight display
Network connectivity
Auto Cutting Printer
